Description
Table of Contents
-
- Introduction to the Krix Megaphonix Centre In-Wall
- Key Features of the Krix Megaphonix Centre In-Wall
- Why Your Cinema Needs a Dedicated Centre Channel
- The Science Behind Horn-Loaded Technology
- Technical Specifications & Performance Data
- Installation Requirements & Best Practices
- Frequently Asked Questions (FAQ)
- Why Choose Krix Audio?

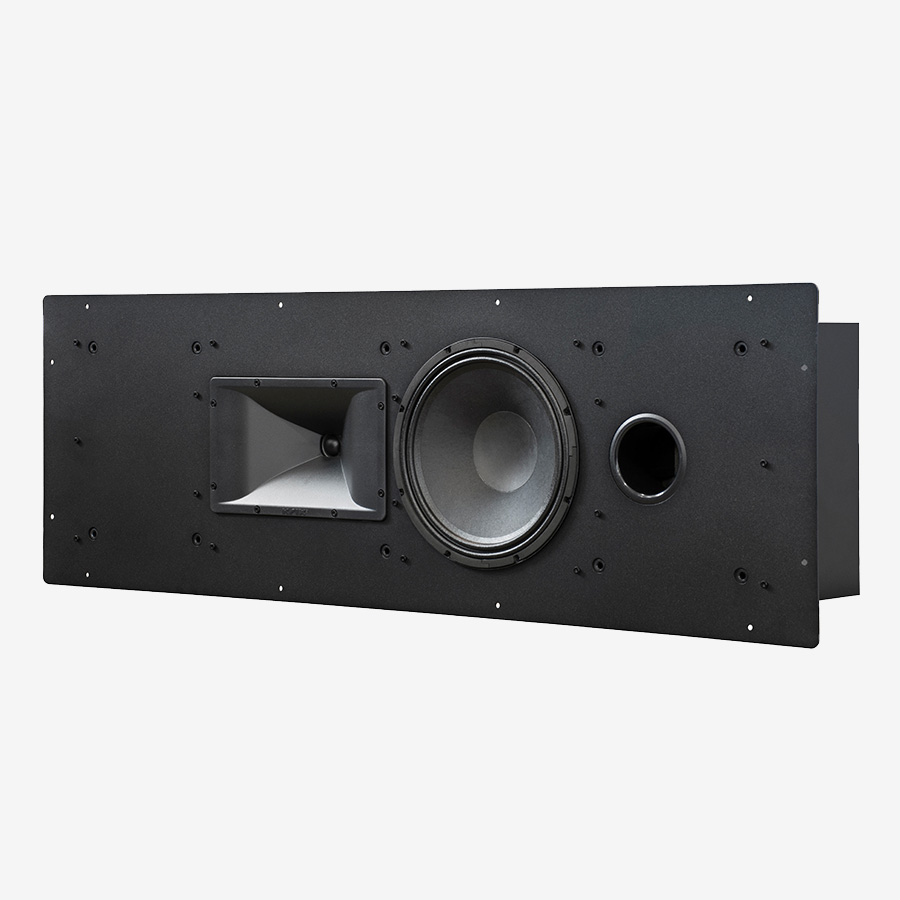

1. Introduction to the Krix Megaphonix Centre In-Wall
When it comes to building a world-class home theatre, the centre channel is the most critical component. The Krix Megaphonix Centre In-Wall brings the raw energy of a commercial cinema directly into your home. This is not a standard architectural speaker; it is a high-sensitivity, high-output monster designed for dedicated theatre rooms.
Specifically engineered to fit within a standard 355mm (14″) stud wall cavity, the Krix Megaphonix Centre In-Wall allows you to have a massive, professional-grade speaker hidden behind your acoustically transparent screen or decorative fabric.
2. Key Features of the Krix Megaphonix Centre In-Wall
The Krix Megaphonix Centre In-Wall is packed with specialized features for the enthusiast:
-
- Extreme Sensitivity: A 95dB rating means this speaker produces more sound with less power.
- High-Impact Driver: Features a 255mm (10-inch) paper cone driver for deep, punchy mid-bass.
- Rotatable Horn: The 90 x 40 degree horn can be rotated to suit horizontal or vertical installation.
- In-Wall Integration: A slim 190mm depth ensures it fits into most wall cavities.
- Cinema DNA: Uses the same components found in Krix commercial cinema speakers worldwide.
3. Why Your Cinema Needs a Dedicated Centre Channel
In any film, over 70% of the audio—including almost all dialogue—is delivered through the centre speaker. The Krix Megaphonix Centre In-Wall ensures that every whisper is crisp and every explosion is impactful. By using a high-pressure design, the Krix Megaphonix Centre In-Wall avoids the “thin” sound associated with typical in-wall speakers, providing a rich, full-bodied vocal presence.
4. The Science Behind Horn-Loaded Technology
The heart of the Krix Megaphonix Centre In-Wall is its proprietary short-throw waveguide. Traditional tweeters spray sound in all directions, causing reflections off the ceiling and floor that muddy the audio.
The Krix Megaphonix Centre In-Wall horn controls the dispersion, focusing the sound directly at the audience. This results in surgical precision and a soundstage that feels much larger than the room itself.
5. Technical Specifications & Performance Data
For those designing a high-end system, the Krix Megaphonix Centre In-Wall offers professional-grade stats:
-
- Frequency Range: 40Hz – 20kHz
- Power Handling: 50 – 250 Watts RMS
- Sensitivity: 95dB (2.83V / 1m)
- Impedance: Nominally 8 Ohms
- Dimensions: 700mm High x 390mm Wide x 190mm Deep
- Mounting Cut-out: 645mm x 335mm
6. Installation Requirements & Best Practices
To ensure the Krix Megaphonix Centre In-Wall performs to its full potential, consider the following:
-
- Back Box: The Krix Megaphonix Centre In-Wall features an integrated back box to prevent sound leakage into other rooms.
- Acoustically Transparent Screens: This speaker is ideal for placement behind a woven or micro-perforated projector screen.
- Positioning: Install with the horn at ear level for the most immersive experience.
- Amplification: While sensitive, it thrives on high-quality external power amplifiers.
7. Frequently Asked Questions (FAQ)
Can I use the Krix Megaphonix Centre In-Wall as a Left or Right speaker?
Yes. Since the horn is rotatable, the Krix Megaphonix Centre In-Wall is often used as a matched LCR (Left, Centre, Right) set for total tonal consistency.
Does it require a subwoofer?
While it has great mid-bass, we recommend pairing the Krix Megaphonix Centre In-Wall with a Krix Cyclonix or Volcanix subwoofer to handle sub-20Hz frequencies.
Is the baffle painted?
The speaker comes in a professional “Cinema Black” finish, designed to disappear behind a screen or fabric wall.
8. Why Choose Krix Audio?
Krix is a world-leader in cinema sound. When you invest in a Krix Megaphonix Centre In-Wall, you are buying 40 years of Australian research and development.
Specification
| Parameter | Specification |
|---|---|
| Frequency Range | 40Hz – 20kHz (in-room response) |
| Power Handling | 50 – 250 Watts RMS (recommended amplifier power) |
| Sensitivity | 95 dB (2.83V @ 1 metre) |
| Impedance | 8 Ohms |
| Configuration | 2-way |
| Enclosure Type | Bass reflex, front vented |
| Low Frequency Driver | Single 255mm (10”) paper cone driver, 50mm (2”) voice coil, kapton former, ventilated magnet assembly, copper shorting ring |
| High Frequency Driver | 26mm (1”) doped fabric dome, ferrofluid cooled, 90° × 40° waveguide |
| Crossover Point | 1.8 kHz |
| Input Terminals | Nickel plated spring terminals, 5mm hole (supports up to 10 AWG cable) |
| Cut-out Dimensions | 295mm (H) × 1045mm (W) (recommended) |
| Dimensions | Cabinet: 285mm (H) × 1035mm (W) × 150mm (D)Faceplate: 367mm (H) × 1117mm (W) × 2mm (T) |
| Weight | 23 kg (each) |
