The Evolution of the Krix Megaphonix Flat On-Wall
The Krix Megaphonix Flat On-Wall represents a major leap in residential cinema technology. Traditionally, achieving high Sound Pressure Levels (SPL) required massive cabinets that dominated a room. Krix has challenged this convention by distilling their commercial cinema expertise into a slim, 125mm deep enclosure.
Designed for the most demanding home theatres, the Krix Megaphonix Flat On-Wall delivers the same impact and clarity found in professional screening rooms. It is the perfect match for enthusiasts who want their audio to be felt as much as it is heard, providing a visceral experience that brings movies to life.
Key Benefits of the Krix Megaphonix Flat On-Wall
Slimline “Flat” Design
The primary advantage of the Krix Megaphonix Flat On-Wall is its depth. At just 125mm deep, it can be mounted directly to a wall behind an acoustically transparent screen or on either side of a large display. This “flat” profile ensures it remains unobtrusive while delivering massive scale.
Extreme High-Efficiency
With a sensitivity rating of 95dB, the Krix Megaphonix Flat On-Wall is remarkably efficient. This means it requires less power from your amplifier to reach deafening cinema levels, resulting in lower distortion and higher dynamic headroom for those explosive action sequences.
Acoustic Engineering and Professional Components

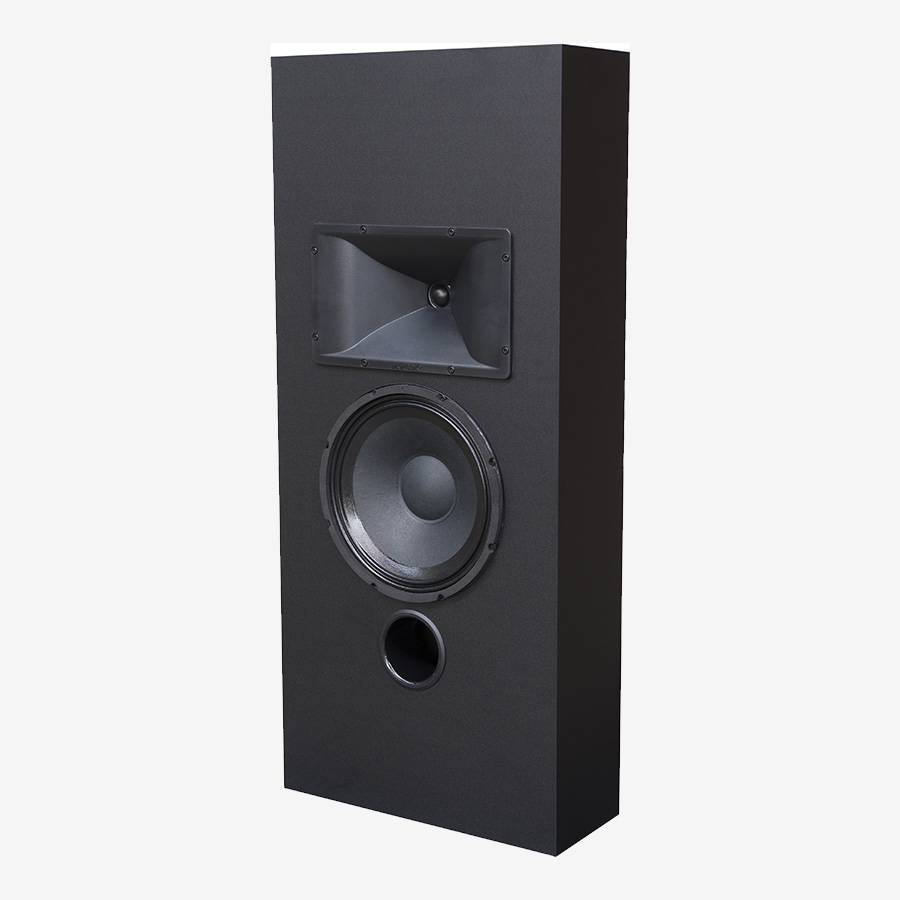

The Krix Megaphonix Flat On-Wall is built using professional-grade components. At its core is a high-power 255mm (10-inch) bass driver featuring a 50mm voice coil. This large driver allows for effortless mid-bass “slam,” ensuring you feel every punch and explosion.
To handle the high frequencies, the Krix Megaphonix Flat On-Wall utilizes a 26mm compression driver coupled to a constant directivity horn. This technology is the gold standard in commercial cinemas because it provides consistent coverage and prevents the “harshness” often associated with high-volume playback.
Why Choose the Krix Megaphonix Flat On-Wall for LCR?
For the ultimate home theatre, consistency is key. Using three Krix Megaphonix Flat On-Wall units for your Left, Center, and Right (LCR) channels creates a perfectly timbre-matched front soundstage.
As objects move across the screen, the sound signature remains identical, preventing any “tonal shifts” that can break immersion. The Krix Megaphonix Flat On-Wall is engineered to handle the heavy lifting of the front channels, where the majority of movie dialogue and action occurs.
Seamless Installation and Room Integration
Mounting the Krix Megaphonix Flat On-Wall is straightforward, thanks to its integrated mounting system. It features a braced, high-density cabinet that minimizes resonance, ensuring that your walls don’t vibrate along with the soundtrack.
- Behind-the-Screen: Its shallow depth makes it the #1 choice for “baffle wall” installations.
- Aesthetic Finish: The black cloth grille and “Cinema Black” finish allow it to disappear in a darkened room.
- Connectivity: Features heavy-duty terminals to accommodate high-gauge speaker wire for maximum signal integrity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 40Hz – 20kHz (in-room response) |
| Power Handling | 50 – 250 Watts RMS (recommended amplifier power) |
| Sensitivity | 95 dB (2.83V @ 1 metre) |
| Impedance | 8 Ohms |
| Configuration | 2-way |
| Enclosure Type | Bass reflex, front vented |
| Low Frequency Driver | Single 255mm (10”) paper cone driver, 50mm (2”) voice coil, kapton former, ventilated magnet assembly, copper shorting ring |
| High Frequency Driver | 26mm (1”) doped fabric dome, ferrofluid cooled, 90° × 40° waveguide |
| Crossover Point | 1.8 kHz |
| Input Terminals | Nickel plated spring terminals, 5mm hole (supports up to 10 AWG cable) |
| Dimensions | 885mm (H) × 390mm (W) × 162mm (D) |
| Weight | 15 kg (each) |
