Description
Table of Contents
- Introduction to the Krix Phonix In-Wall
- The 15-Degree Angled Baffle Advantage
- Key Features of the Krix Phonix In-Wall
- Acoustic Engineering and Driver Technology
- Installation and Seamless Integration
- Technical Specifications
- Frequently Asked Questions (FAQ)

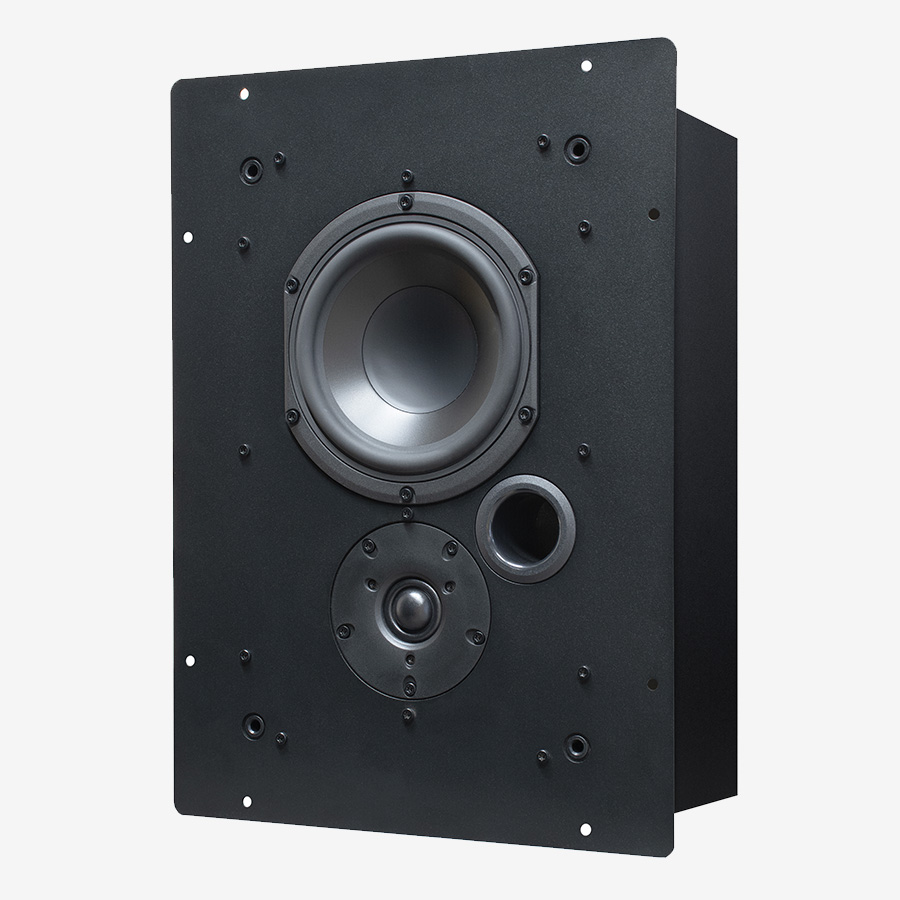

Introduction to the Krix Phonix In-Wall
The Krix Phonix In-Wall is a masterclass in architectural audio engineering. Designed specifically for surround and overhead applications, this speaker solves the biggest challenge in home cinema: directional sound. While standard in-wall speakers fire straight ahead, the Krix Phonix In-Wall is built to perform.
By using an angled internal baffle, this speaker ensures that high-frequency detail is aimed toward the listener. This results in a much larger “sweet spot” and a more cohesive soundstage. Whether you are watching an action blockbuster or a live concert, the Krix Phonix In-Wall places you right in the center of the action.
The 15-Degree Angled Baffle Advantage
The standout feature of the Krix Phonix In-Wall is its 15-degree angled front baffle. In a typical surround setup, speakers are mounted to the sides or rear of the seating position. A flat speaker often loses critical treble information because sound becomes directional at higher frequencies.
The Krix Phonix In-Wall tilts the drivers toward your ears. This mechanical alignment improves phase coherence and high-frequency extension. You won’t just hear sound behind you; you will hear the specific placement of every leaf crunching or bullet casing hitting the floor.
Key Features of the Krix Phonix In-Wall
Slim Depth for Standard Walls
Despite its complex internal geometry, the Krix Phonix In-Wall is remarkably slim. It is designed to fit comfortably within a standard 90mm wall cavity. This makes it an ideal choice for high-end residential projects where wall space is shallow but performance expectations are high.
Heavy Duty Timber Enclosure
Unlike many competitors that use plastic frames, the Krix Phonix In-Wall features a fully enclosed timber cabinet. This design ensures that the acoustic energy stays in the room rather than vibrating through the wall studs into the next room.
High-Power 165mm Driver
The Krix Phonix In-Wall utilizes a high-quality 165mm (6.5-inch) bass/mid driver. This driver features a 33mm voice coil, allowing it to handle massive dynamic peaks without straining.
Acoustic Engineering and Driver Technology
Krix has been the “Voice of the Cinema” for decades. The Krix Phonix In-Wall uses the same 26mm (1-inch) dual-concentric diaphragm tweeter found in their premium floorstanding models. This tweeter includes a wave-guide plug for controlled directivity and lower distortion.
The crossover network inside the Krix Phonix In-Wall is high-order and uses professional-grade components. This ensures that the transition between the bass driver and the tweeter is virtually audible, providing a smooth, natural sound across the entire frequency range.
Installation and Seamless Integration
The Krix Phonix In-Wall is designed to disappear. Once installed, the magnetic steel grille sits nearly flush against the wall. The grille can be painted to match your interior, making the speaker invisible to everyone but your ears.
- Retrofit Friendly: Can be installed in existing walls or new builds.
- Flexible Orientation: Can be mounted for side surround, rear surround, or even as high-quality Atmos height channels.
- Secure Mounting: Features a robust mounting system to eliminate rattles.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 45Hz – 20kHz (-10 dB) |
| Power Handling | 50 – 150 Watts RMS (recommended amplifier power) |
| Sensitivity | 88 dB (2.83V @ 1 metre) |
| Impedance | 8 Ohms |
| Configuration | 2-way |
| Enclosure Type | Bass reflex, front vented |
| Low Frequency Driver | Single 165mm (6½”) laminated polypropylene cone, 33mm (1¼”) voice coil, aluminium former, ventilated spider, aluminium flux stabilization ring |
| High Frequency Driver | 26mm (1”) doped fabric dome, ferrofluid cooled |
| Crossover Point | 1.8 kHz |
| Input Terminals | Gold plated binding posts |
| Cut-out Dimensions | 393mm (H) × 265mm (W) (recommended) |
| Dimensions | Cabinet: 388mm (H) × 260mm (W) × 120mm (D)Faceplate: 453mm (H) × 325mm (W) × 1.6mm (T) |
| Weight | 7 kg (each) |
