Description
Table of Contents
-
- Introduction to Krix Scenix In-Wall Audio
- Key Features of the Krix Scenix In-Wall
- The Engineering Behind Krix Scenix In-Wall
- Acoustic Performance and Versatility
- Installation: The Krix Scenix In-Wall Advantage
- Technical Specifications
- Frequently Asked Questions (FAQ)
Introduction to Krix Scenix In-Wall Audio
The Krix Scenix In-Wall is the answer for those who refuse to choose between interior design and world-class sound. As part of the Series MX-inspired range, this speaker brings the high-impact performance of a commercial cinema into the home.
Whether you are building a 5.1 surround system or a complex Dolby Atmos configuration, the Krix Scenix In-Wall provides the clarity and punch required for modern high-definition media. It is engineered to disappear into your room while filling it with immersive, detailed audio.
Key Features of the Krix Scenix In-Wall
Slimline 90mm Cabinet
The Krix Scenix In-Wall is specifically designed for Australian and international building standards. Its 90mm mounting depth ensures it fits flush into standard wall studs, making it the ultimate choice for retrofitting or new builds.
High-Power Handling

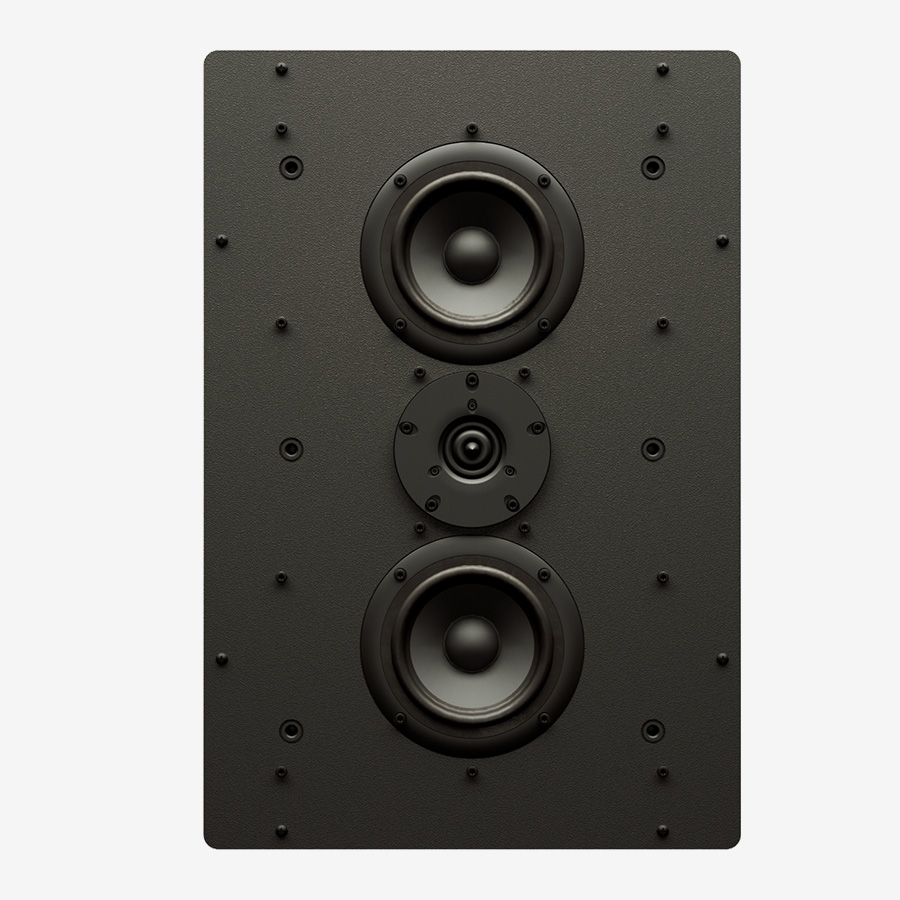

Don’t let the slim profile fool you. The Krix Scenix In-Wall features dual 130mm (5-inch) bass drivers and a 26mm (1-inch) ring radiator tweeter. This combination allows for high sound pressure levels and effortless dynamics.
Timber-Braced Enclosure
Unlike cheap plastic in-wall speakers, the Krix Scenix In-Wall uses a fully enclosed, braced timber cabinet. This prevents sound leakage into adjacent rooms and ensures the bass remains tight and controlled.
The Engineering Behind Krix Scenix In-Wall
Krix has been a leader in cinema audio for decades, and the Krix Scenix In-Wall benefits directly from that heritage. The crossover network is meticulously tuned to provide a seamless transition between the high and low frequencies.
The use of a ring radiator tweeter in the Krix Scenix In-Wall is a strategic choice. It provides a wider dispersion pattern than traditional domes. This means every listener in the room experiences a detailed soundstage, not just those in the “sweet spot.”
Acoustic Performance and Versatility
The Krix Scenix In-Wall excels as a front LCR (Left, Center, Right) speaker. Because the tweeter is positioned between the two bass drivers in a D’Appolito MT-M configuration, the vertical dispersion is controlled, reducing reflections from floors and ceilings.
This versatility makes the Krix Scenix In-Wall perfect for:
-
- Main front channels in a living room cinema.
- Surround speakers in a dedicated theatre.
- High-end multi-room audio for music lovers.
Installation: The Krix Scenix In-Wall Advantage
Installing the Krix Scenix In-Wall is a seamless process for any integrator. The magnetic grille allows for a clean finish, and the speaker can be mounted either vertically or horizontally to fit your space.
-
- Stud Fit: Fits perfectly between 450mm or 600mm stud centers.
- Connectivity: Features high-quality spring terminals for secure wiring.
- Finish: The white steel grille is paintable to match your aesthetic.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 80Hz – 40kHz (in-room response) |
| Power Handling | 50 – 150 Watts RMS (recommended amplifier power) |
| Sensitivity | 91 dB (2.83V @ 1 metre) |
| Impedance | 6 Ohms |
| Configuration | 2-way |
| Enclosure Type | Sealed |
| Low Frequency Driver | 130mm (5¼”) doped paper cone, fibre reinforced polymer basket, 25mm (1”) voice coil, aluminium former, vented magnet |
| High Frequency Driver | 26mm (1”) dual concentric diaphragm, waveguide centre plug, dual chamber magnet, copper shorting ring |
| Crossover Point | 2.1 kHz |
| Input Terminals | Gold plated binding posts |
| Cut-out Dimensions | 475mm (H) × 300mm (W) (recommended) |
| Dimensions | Cabinet: 470mm (H) × 295mm (W) × 97mm (D)Faceplate: 535mm (H) × 360mm (W) × 1.6mm (T)Grille: 538mm (H) × 363mm (W) × 13mm (D) |
| Weight | 10 kg (each) |
