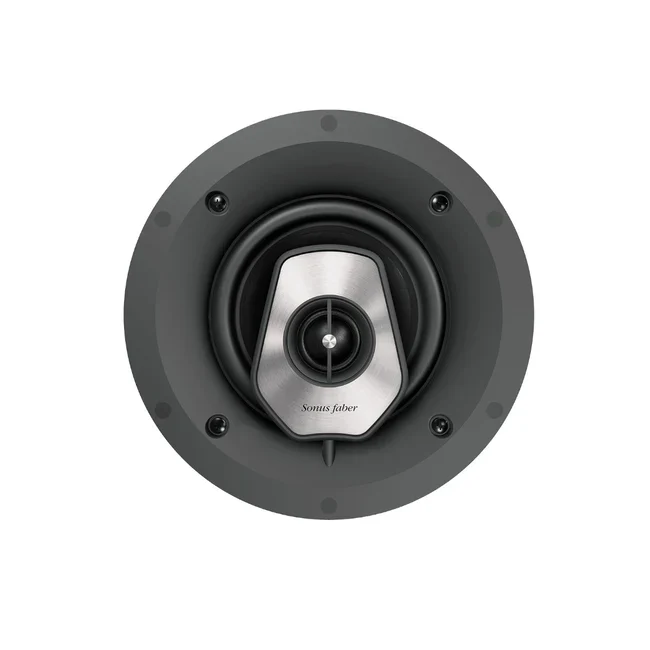

Introduction to the Sonus Faber Palladio PC-562
The Sonus Faber Palladio PC-562 is part of the prestigious Level 5 Palladio collection, a series created to bring the soul of Italian high-end audio into the architectural world. Named after the famous Renaissance architect Andrea Palladio, this speaker is designed to be as much a piece of art as it is a technical marvel.
For decades, Sonus Faber has been synonymous with world-class floorstanding speakers. With the Sonus Faber Palladio PC-562, that same emotional, natural sound signature is now available in an in-ceiling format. Whether you are building a high-end multi-room audio system or adding height channels to a Dolby Atmos home cinema, the PC-562 provides an unmatched listening experience.
The “Voice of Sonus Faber” in Your Ceiling
The most defining characteristic of the Sonus Faber Palladio PC-562 is its adherence to the brand’s iconic sound signature. Often referred to as “The Voice of Sonus Faber,” this acoustic profile focuses on natural materials and silky-smooth high frequencies.
The DAD (Damped Apex Dome) Tweeter
The Sonus Faber Palladio PC-562 incorporates the proprietary DAD tweeter technology found in the Olympica Nova and Sonetto collections. By damping the apex of the silk dome, Sonus Faber eliminates anti-phase behavior, resulting in high-frequency reproduction that is airy, detailed, and never fatiguing.
Natural Fiber Mid-Woofer
To complement the tweeter, the Sonus Faber Palladio PC-562 features a 6.5-inch mid-woofer made from a blend of natural fibers and cellulose pulp. This air-dried diaphragm ensures a warm, lifelike midrange—essential for crystalline dialogue and rich musical vocals.
Level 5 Design: Aesthetics Meet Engineering
Unlike traditional in-ceiling speakers that look like industrial utility parts, the Sonus Faber Palladio PC-562 is a masterpiece of design.
The front baffle is covered in fine leather, a nod to the artisanal heritage of Vicenza, Italy. This isn’t just for looks; the leather serves an acoustic purpose by reducing unwanted reflections around the drivers. The Sonus Faber Palladio PC-562 also comes with a “trimless” magnetic metal grille that can be painted to match your ceiling perfectly.
Key Features of the Sonus Faber Palladio PC-562
- Paracross Topology: The crossover network in the Sonus Faber Palladio PC-562 uses semi-balanced circuitry to make the speaker less sensitive to radio-frequency interference and improve transient response.
- Easy Installation: Featuring a robust “dog-leg” mounting system, the speaker can be secured quickly and safely into standard plasterboard ceilings.
- Timbre Matching: The Sonus Faber Palladio PC-562 is sonically matched to Sonus Faber’s free-standing collections, allowing for a seamless blend in hybrid systems.
Technical Specifications and Dimensions
The Sonus Faber Palladio PC-562 is designed to provide full-range sound from a relatively compact architectural cutout.
| Feature | Specification |
|---|---|
| System | 2-way in-ceiling, infinite baffle |
| Tweeter | 29mm (1.1″) Damped Apex Dome |
| Woofer | 165mm (6.5″) Natural Fiber Cone |
| Frequency Response | 50 Hz – 25,000 Hz |
| Sensitivity | 90 dB (2.83 V/1m) |
| Nominal Impedance | 4 Ohms |
| Cutout Diameter | 210mm (8.3″) |
| Mounting Depth | 115mm (4.5″) |
Installation and Architectural Integration
The Sonus Faber Palladio PC-562 is an “Infinite Baffle” design, meaning it uses the ceiling cavity as its enclosure. For the best performance, we recommend:
- Placement: Space speakers 2-3 meters apart for a wide stereo image in multi-room setups.
- Atmos Heights: Use four Sonus Faber Palladio PC-562 units in a 5.1.4 configuration for a truly immersive overhead experience.
- Amplification: While efficient, these speakers thrive with high-quality amplification that can handle a 4-ohm load.
