Introduction to the Sonus Faber Palladio PC-662 P

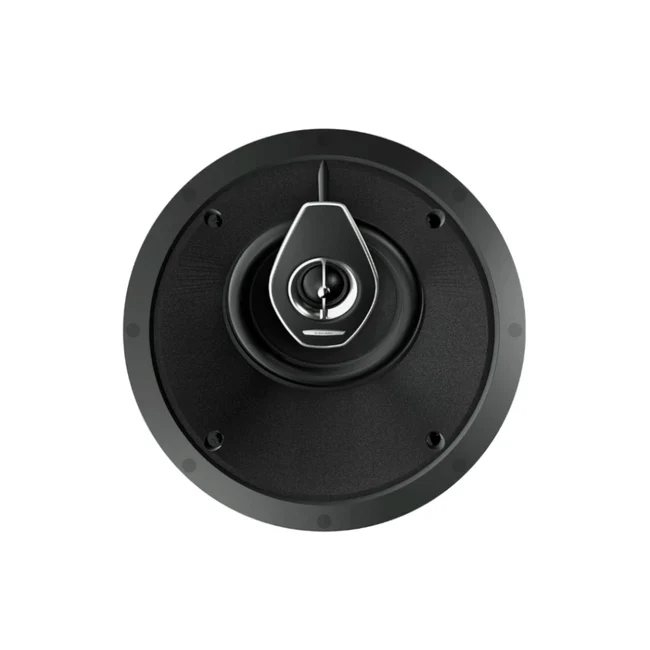

The Sonus Faber Palladio PC-662 P is a specialized high-performance loudspeaker belonging to the flagship Level 6 Palladio collection. The “P” (Point) designation represents a revolutionary shift in architectural audio. While most ceiling speakers fire sound straight at the floor, the PC-662 P features drivers angled at 45 degrees to “point” sound directly at the audience.
Named after the Renaissance architect Andrea Palladio, this speaker embodies the perfect marriage of structural engineering and acoustic art. For the 2024 home cinema, the Sonus Faber Palladio PC-662 P offers a guaranteed solution for achieving reference-level sound without the visual clutter of traditional speaker cabinets.
The “Point” Advantage: Angled Driver Technology
The primary challenge of in-ceiling audio is “localization”—the feeling that sound is coming from above rather than from the screen. The Sonus Faber Palladio PC-662 P solves this through its angled baffle design. By orienting the drivers toward the primary listening zone, the speaker creates a coherent horizontal soundstage.
This directivity is essential for LCR (Left, Center, Right) applications. When you use the Sonus Faber Palladio PC-662 P for your front channels, movie dialogue and sound effects feel like they are originating from the actors’ mouths, providing a truly immersive cinematic experience.
Acoustic Excellence: DAD Tweeter & Natural Fibers
The performance of the Sonus Faber Palladio PC-662 P is powered by high-end transducer technology migrated from Sonus Faber’s world-renowned Olympica Nova collection.
Damped Apex Dome (DAD) Tweeter
High frequencies are managed by a 29mm silk dome tweeter. The proprietary DAD technology eliminates anti-phase behavior by damping the apex of the dome. This ensures the Sonus Faber Palladio PC-662 P produces silky-smooth, transparent highs that remain clear even at high volumes.
Natural Fiber Mid-Woofer
The 165mm (6.5-inch) mid-woofer is crafted from a blend of natural fibers and air-dried cellulose pulp. This specific material choice provides the warm, organic midrange that defines the Sonus Faber Palladio PC-662 P, making it exceptional for lifelike vocal reproduction.
Italian Luxury Design: Leather Baffles and Stealth Grilles
Level 6 Palladio speakers are designed to be as beautiful as they are functional. The Sonus Faber Palladio PC-662 P features:
- Artisanal Leather Baffle: The front baffle is hand-finished in fine black leather to reduce acoustic diffraction.
- Trimless Magnetic Grille: The ultra-slim metal grille attaches via magnets for a clean, architectural finish.
- Paintable Finish: You can easily match the Sonus Faber Palladio PC-662 P to your ceiling color for a truly invisible installation.
Technical Specifications and Performance
The Sonus Faber Palladio PC-662 P is a high-performance 4-ohm speaker designed for premium amplification.
| Feature | Specification |
|---|---|
| Speaker Type | 2-Way Angled In-Ceiling (45°) |
| Tweeter | 29mm (1.1″) DAD Silk Dome |
| Woofer | 165mm (6.5″) Natural Fiber |
| Frequency Response | 50 Hz – 25,000 Hz |
| Sensitivity | 90 dB (2.83 V/1m) |
| Impedance | 4 Ohms Nominal |
| Cutout Diameter | 244mm (9.6″) |
| Mounting Depth | 172mm (6.8″) |
Placement Guide: Optimizing the Front Soundstage
For the best results with the Sonus Faber Palladio PC-662 P, proper alignment is critical.
- LCR Orientation: Ensure the angled baffle is pointing toward the primary seating area.
- Distance from Screen: Place the speakers approximately 0.5 to 1 meter in front of the screen.
- Amplification: As a 4-ohm speaker, the Sonus Faber Palladio PC-662 P thrives when paired with high-current amplifiers or premium AV receivers.
