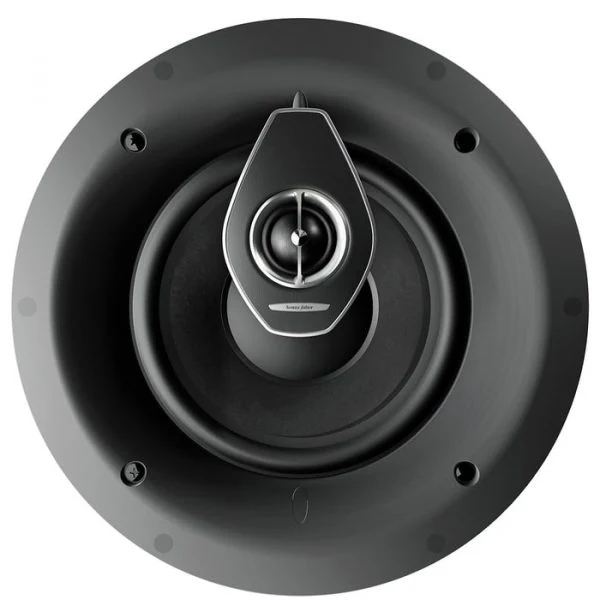

Introduction to the Sonus Faber Palladio PC-682
The Sonus Faber Palladio PC-682 is the flagship in-ceiling model within the prestigious Level 6 Palladio collection. Developed to bridge the gap between traditional high-fidelity loudspeakers and architectural convenience, this speaker brings the soul of the Olympica Nova collection to your ceiling.
For the discerning audiophile, the Sonus Faber Palladio PC-682 offers a wide frequency response and staggering dynamic range. Whether you are building a reference-grade Dolby Atmos home cinema or a high-end whole-home audio system, these speakers provide the warmth, clarity, and authority that only Italian engineering can provide.
The Level 6 Excellence: Italian Craftsmanship
Belonging to the Level 6 range, the Sonus Faber Palladio PC-682 benefits from premium materials rarely seen in architectural audio. Every unit is a tribute to the brand’s heritage in Vicenza, Italy.
The front baffle is hand-finished in fine leather, which serves a dual purpose: it provides a luxurious aesthetic while simultaneously damping acoustic reflections around the drivers. This attention to detail ensures that the Sonus Faber Palladio PC-682 remains a cut above the industrial-looking alternatives found on the market.
Acoustic Engineering: DAD Tweeter & 8-Inch Woofer
The performance of the Sonus Faber Palladio PC-682 is driven by high-end transducer technology migrated from Sonus Faber’s flagship cabinet speakers.
Damped Apex Dome (DAD) Tweeter
High frequencies are handled by a 29mm silk dome tweeter. The proprietary DAD technology eliminates anti-phase behavior by damping the apex of the dome. This results in an airy, transparent high-frequency reproduction that makes the Sonus Faber Palladio PC-682 sound incredibly lifelike.
8-Inch Natural Fiber Woofer
The 200mm (8-inch) mid-woofer is crafted from a custom blend of natural fibers and air-dried cellulose pulp. This large diaphragm allows the Sonus Faber Palladio PC-682 to produce deep, authoritative bass that smaller 6-inch speakers cannot match, reaching down to 45Hz with ease.
Design Aesthetics: Leather and Stealth Integration
Sonus Faber believes that a speaker should be felt but not necessarily seen. The Sonus Faber Palladio PC-682 achieves this through:
- Trimless Magnetic Grille: The ultra-slim metal grille attaches via magnets for a clean, screw-less look.
- Paintable Finish: You can customize the Sonus Faber Palladio PC-682 to match your ceiling perfectly.
- Walnut Wood Accents: Select models in the Level 6 range feature walnut wood inserts, echoing the design of the Olympica Nova series.
Technical Specifications and Performance Metrics
The Sonus Faber Palladio PC-682 is a high-performance 4-ohm speaker designed for premium amplification.
| Feature | Specification |
|---|---|
| System | 2-Way In-Ceiling, Infinite Baffle |
| Tweeter | 29mm (1.1″) DAD Silk Dome |
| Woofer | 200mm (8.0″) Natural Fiber Cone |
| Frequency Response | 45 Hz – 25,000 Hz |
| Sensitivity | 90 dB (2.83 V/1m) |
| Nominal Impedance | 4 Ohms |
| Recommended Power | 40W – 200W |
| Cutout Diameter | 244mm (9.6″) |
Installation Guide and System Matching
The Sonus Faber Palladio PC-682 features a robust “dog-leg” mounting system for secure installation.
- Amplifier Choice: As a 4-ohm speaker, the Sonus Faber Palladio PC-682 thrives when paired with high-current amplifiers.
- Home Cinema: Use these as height channels in an Atmos system to match Sonus Faber Olympica Nova front speakers.
- Backbox: While designed for infinite baffle use, a wooden backbox is available to enhance bass consistency and soundproofing.
