Description
Table of Contents
- Introduction to the Sonus Faber Palladio PC-683
- The 3-Way Advantage: Precision and Power
- The “Voice of Sonus Faber” Driver Technology
- Artisanal Design: Leather, Wood, and Stealth
- Technical Specifications and Performance
- Installation and Architectural Integration
- Sonus Faber Palladio PC-683 Frequently Asked Questions

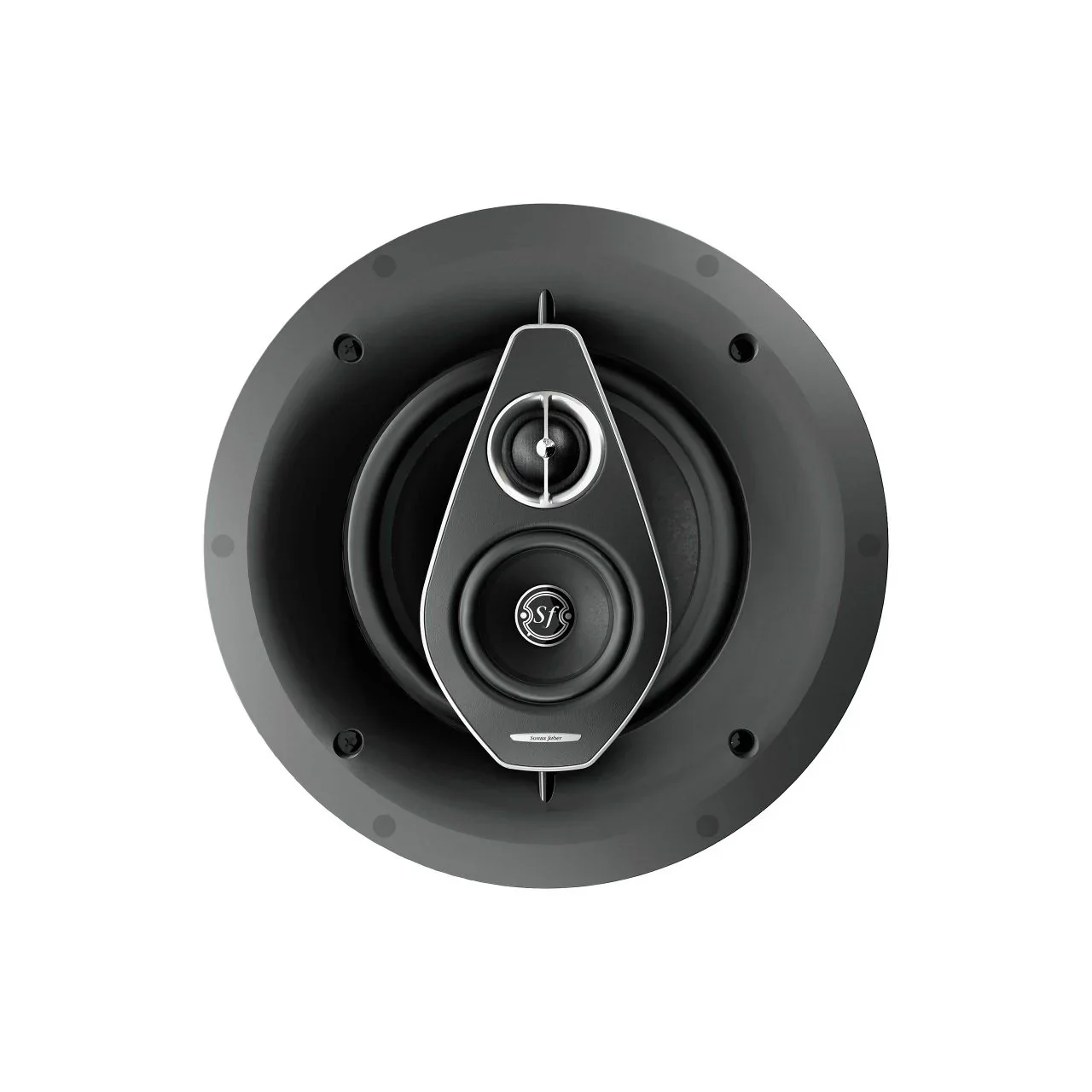

Introduction to the Sonus Faber Palladio PC-683
The Sonus Faber Palladio PC-683 is the flagship 3-way model within the elite Level 6 Palladio collection. Developed for the most demanding audiophiles, this speaker bridges the gap between traditional high-end floorstanders and architectural convenience. It doesn’t just play background music; it creates a reference-grade soundstage above your head.
Named after the Renaissance architect Andrea Palladio, this speaker embodies a revolutionary approach to structural acoustics. By incorporating a dedicated midrange driver alongside a powerful woofer and tweeter, the Sonus Faber Palladio PC-683 ensures that every nuance of a movie soundtrack or musical score is rendered with absolute fidelity and Italian soul.
The 3-Way Advantage: Precision and Power
Most in-ceiling speakers rely on a 2-way design that forces a single driver to handle both midrange and bass frequencies. The Sonus Faber Palladio PC-683 breaks this convention with a sophisticated 3-way configuration.
By utilizing a dedicated midrange driver, the Sonus Faber Palladio PC-683 achieves:
- Crystalline Dialogue: Vocals are isolated and rendered with lifelike texture.
- Dynamic Bass: The 8-inch woofer is free to focus solely on deep low-frequency impact.
- Reduced Distortion: Each driver operates within its ideal frequency range, providing a cleaner, more effortless sound even at high volumes.
The “Voice of Sonus Faber” Driver Technology
The performance of the Sonus Faber Palladio PC-683 is powered by transducer technology migrated directly from the world-renowned Olympica Nova collection.
Damped Apex Dome (DAD) Tweeter
The 29mm silk dome tweeter features the proprietary DAD system. By damping the apex of the dome, the Sonus Faber Palladio PC-683 eliminates anti-phase behavior, resulting in airy, transparent highs that never become fatiguing.
Natural Fiber Midrange and Woofer
Both the 80mm midrange and the 200mm (8-inch) woofer are crafted from a custom blend of natural fibers and air-dried cellulose pulp. This organic material ensures the Sonus Faber Palladio PC-683 maintains a warm, natural timbre that is the hallmark of Italian high-end audio.
Artisanal Design: Leather, Wood, and Stealth
Level 6 speakers are designed to be as beautiful as they are functional. The Sonus Faber Palladio PC-683 features a baffle hand-finished in fine black leather, which serves to dampen acoustic reflections around the drivers.
- Trimless Magnetic Grille: The ultra-slim metal grille attaches via magnets for a clean, architectural finish.
- Paintable Surface: You can easily match the Sonus Faber Palladio PC-683 to your ceiling color for a truly invisible installation.
- Walnut Accents: Select internal components echo the walnut wood design of Sonus Faber’s flagship cabinet speakers.
Technical Specifications and Performance
The Sonus Faber Palladio PC-683 is a high-performance 4-ohm speaker designed for premium amplification.
| Feature | Specification |
|---|---|
| System | 3-Way In-Ceiling, Infinite Baffle |
| Tweeter | 29mm (1.1″) DAD Silk Dome |
| Midrange | 80mm (3.1″) Natural Fiber |
| Woofer | 200mm (8.0″) Natural Fiber |
| Frequency Response | 38 Hz – 25,000 Hz |
| Sensitivity | 90 dB (2.83 V/1m) |
| Impedance | 4 Ohms Nominal |
| Cutout Diameter | 244mm (9.6″) |
Installation and Architectural Integration
The Sonus Faber Palladio PC-683 features a robust “dog-leg” mounting system for secure, vibration-free installation.
- Amplifier Matching: As a 4-ohm speaker, the Sonus Faber Palladio PC-683 thrives when paired with high-current amplifiers or premium AV receivers.
- Home Cinema: Use these as reference height channels in a Dolby Atmos system to match Sonus Faber front speakers perfectly.
- Backbox: While designed for infinite baffle use, a wooden backbox is available to enhance bass consistency and soundproofing between floors.
