Introduction to the Krix OWX-55 On-wall
Finding a speaker that balances interior aesthetics with genuine “reference level” performance is a challenge. Most on-wall speakers sacrifice bass extension and impact for the sake of a thin cabinet. The Krix OWX-55 On-wall changes the narrative.
Born from the legendary Krix Series MX “Wall of Sound” technology, the OWX-55 is designed to bring commercial-grade audio into the residential living room or dedicated media space. Whether you are building a 5.1 system or a complex Dolby Atmos configuration, these speakers provide the punch and clarity required for modern high-definition soundtracks.
Key Features and Engineering Excellence
The Krix OWX-55 On-wall is more than just a box on a wall; it is a precision-engineered acoustic instrument. By utilizing high-quality components and a unique driver layout, Krix ensures that every seat in your room is the “best seat.”

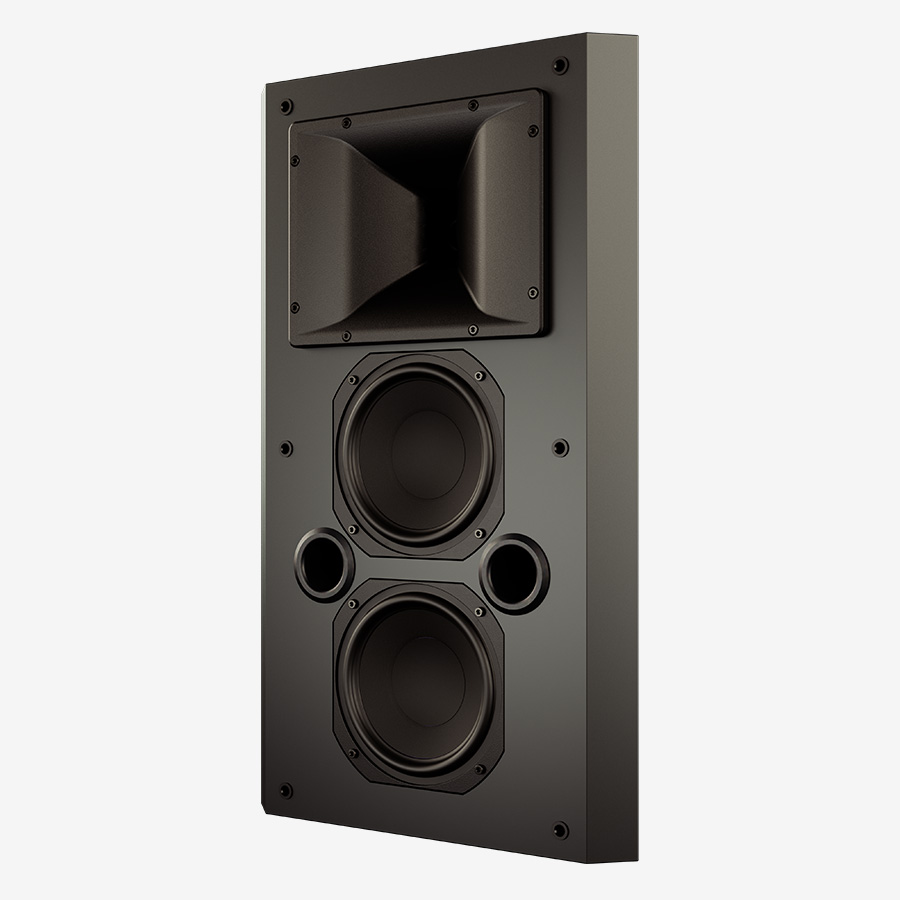

Dual Mid-Bass Drivers for Greater Impact
At the heart of the Krix OWX-55 On-wall are two 135mm (5.25″) mid-bass drivers. These drivers feature 33mm (1.3″) voice coils wound on high-power aluminium formers. This allows the speaker to handle intense action sequences without distortion, providing a tactile “thump” that smaller satellite speakers simply cannot replicate.
The Krix Waveguide Advantage
High frequencies are handled by a 26mm (1″) ring radiator tweeter, nested within a proprietary Krix-designed waveguide. This waveguide performs two critical tasks:
- It controls the directivity of the sound, focusing it toward the listeners.
- It reduces unwanted reflections from side walls and ceilings, ensuring crystal-clear dialogue.
Design: Slim Profile, Massive Sound
One of the primary benefits of the Krix OWX-55 On-wall is its versatility. Measuring only 142mm deep, it fits comfortably alongside large flat-screen TVs or projection screens without protruding awkwardly into the room.
The cabinet is heavily braced and constructed from high-density materials to eliminate “box coloration.” This ensures that the sound you hear is exactly what the movie director intended, with no added vibrations from the speaker housing itself.
Technical Specifications Breakdown
When comparing the Krix OWX-55 On-wall to competitors, the numbers speak for themselves. This speaker is designed for efficiency and high output.
| Parameter | Specification |
|---|---|
| Frequency Range | 60Hz – 20kHz (in-room response) |
| Power Handling | 50 – 500 Watts RMS (recommended amplifier power) |
| Sensitivity | 97dB (2.83V @ 1 metre) |
| Impedance | 4 Ohms |
| Configuration | 2-way |
| Enclosure Type | Bass reflex, front vented |
| Low Frequency Driver | Dual 165mm (6½”) paper cone drivers. 50mm (2”) voice coil wound on high powered kapton former, with ventilated spider and aluminium flux stabilisation ring for low distortion |
| High Frequency Driver | Krix patented short throw constant directivity horn, coupled to a compression driver with a 1” throat and 1¾” voice coil |
| Crossover Point | 1.9kHz |
| Input Terminals | Nickel plated spring terminals featuring a 5mm hole to accept up to 10AWG cable |
| Dimensions | 610mm (H) × 361mm (W) × 175mm (D) (including grille) 617mm (H) × 361mm (W) × 181mm (D) (including bracket) |
| Weight | 14kg (each) |
How to Integrate the Krix OWX-55 into Your Home
The Krix OWX-55 On-wall is an incredibly flexible performer. Because of its high sensitivity, it can be driven effectively by a standard AV Receiver, though it truly sings when paired with dedicated power amplifiers.
- As LCR Speakers: Mount three units vertically around your TV for a seamless front soundstage.
- As Surround Speakers: The wide dispersion characteristics make them excellent side or rear surrounds.
- Mounting: The speaker comes with integrated brackets, making it easy to secure to timber studs or masonry walls.
Why Choose Krix for Your Cinema?
Krix is an Australian icon in the world of cinema. They provide speakers for over 4,000 commercial cinemas worldwide. When you invest in the Krix OWX-55 On-wall, you are benefiting from decades of research into “the science of sound.”
Unlike many lifestyle brands, Krix focuses on acoustic integrity. Every Krix OWX-55 On-wall is tested against a master reference to ensure perfect tonal matching across your entire system.
